ADAMS DRIVESHAFT JL 4XE REAR 1350 CV DRIVESHAFT [EXTREME DUTY SERIES]

$799.95

Adams Driveshaft SKU: ASDJL-1350R-S2D-4XE, ASDJL-1350R-S4D-4XE

2 or 4 Door: 2 Door

Add $150.00 more for FREE shipping!

New Rear Extreme Duty Jeep JL Wrangler 4XE 1350 Series CV Driveshaft with Solid U-joints Custom made by Adams Driveshaft.

Now that you own the Newest Generation Wrangler, it's time to upgrade to the Strongest Made Driveshaft.

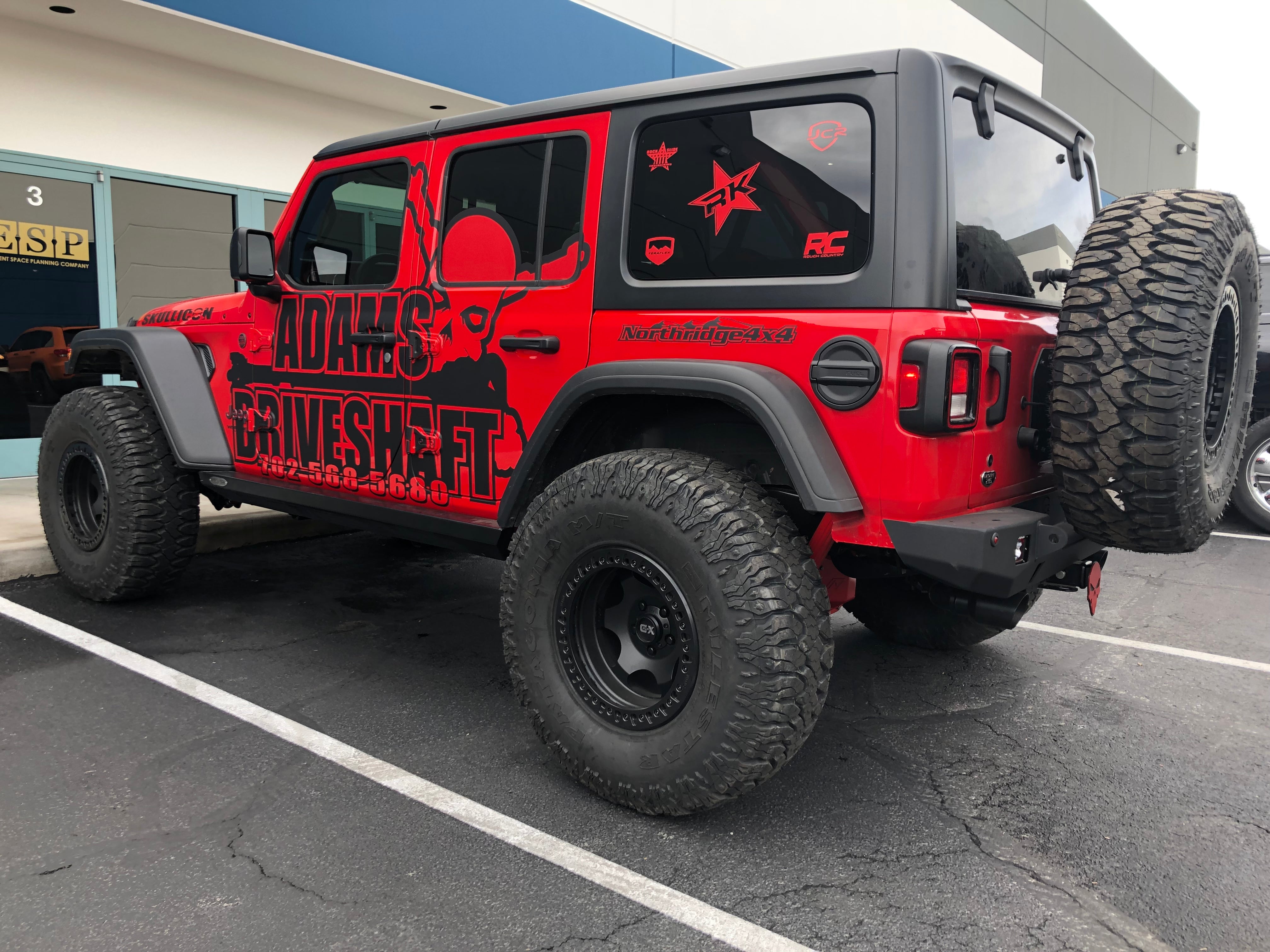

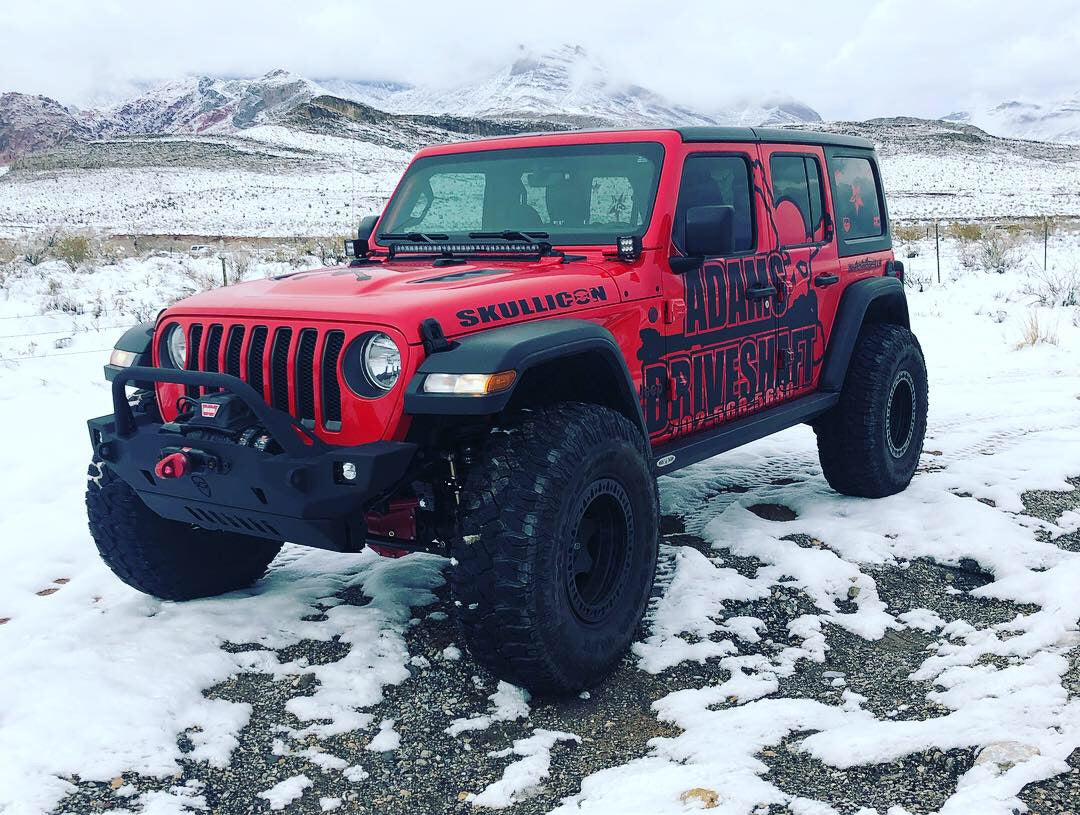

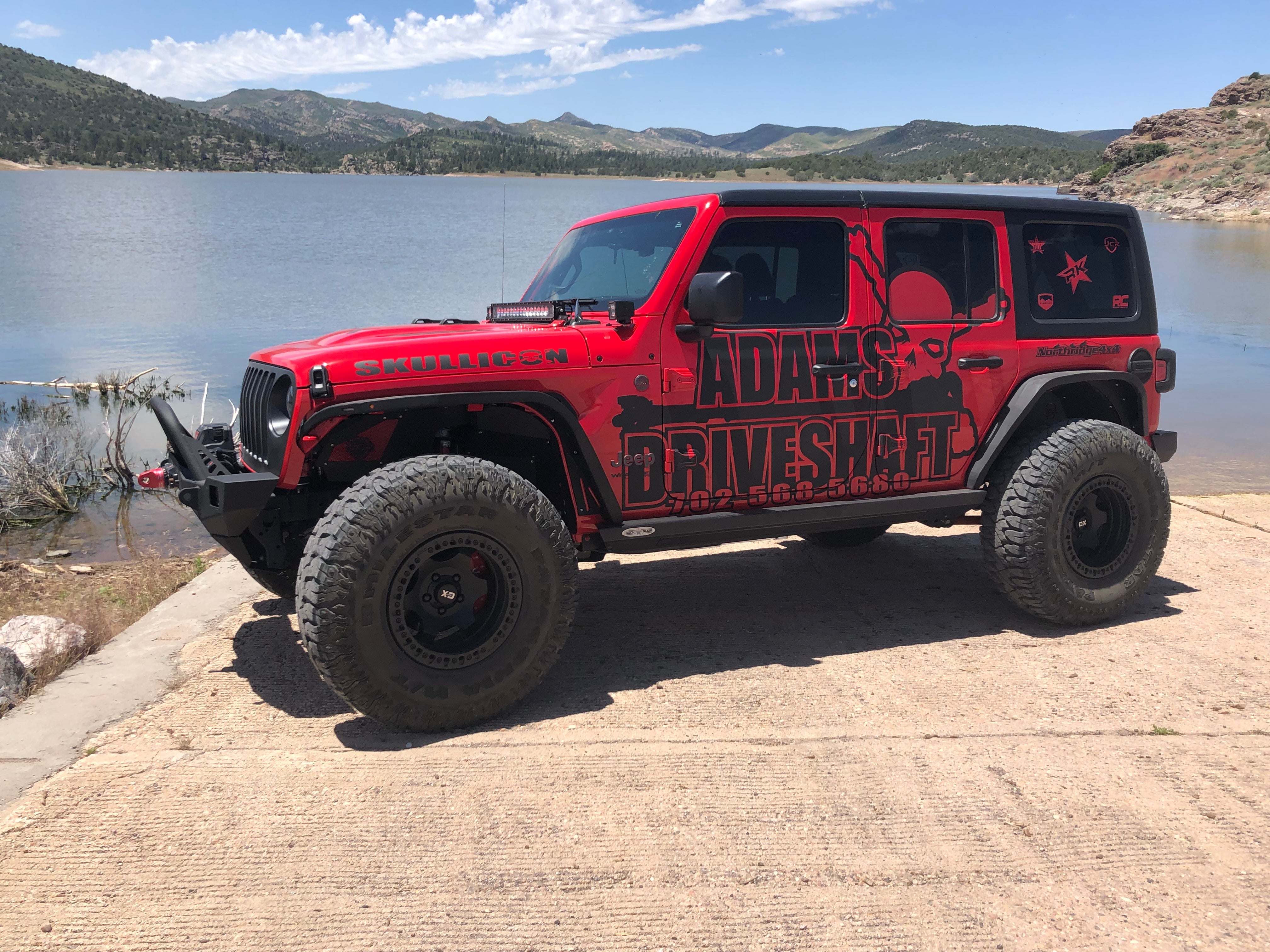

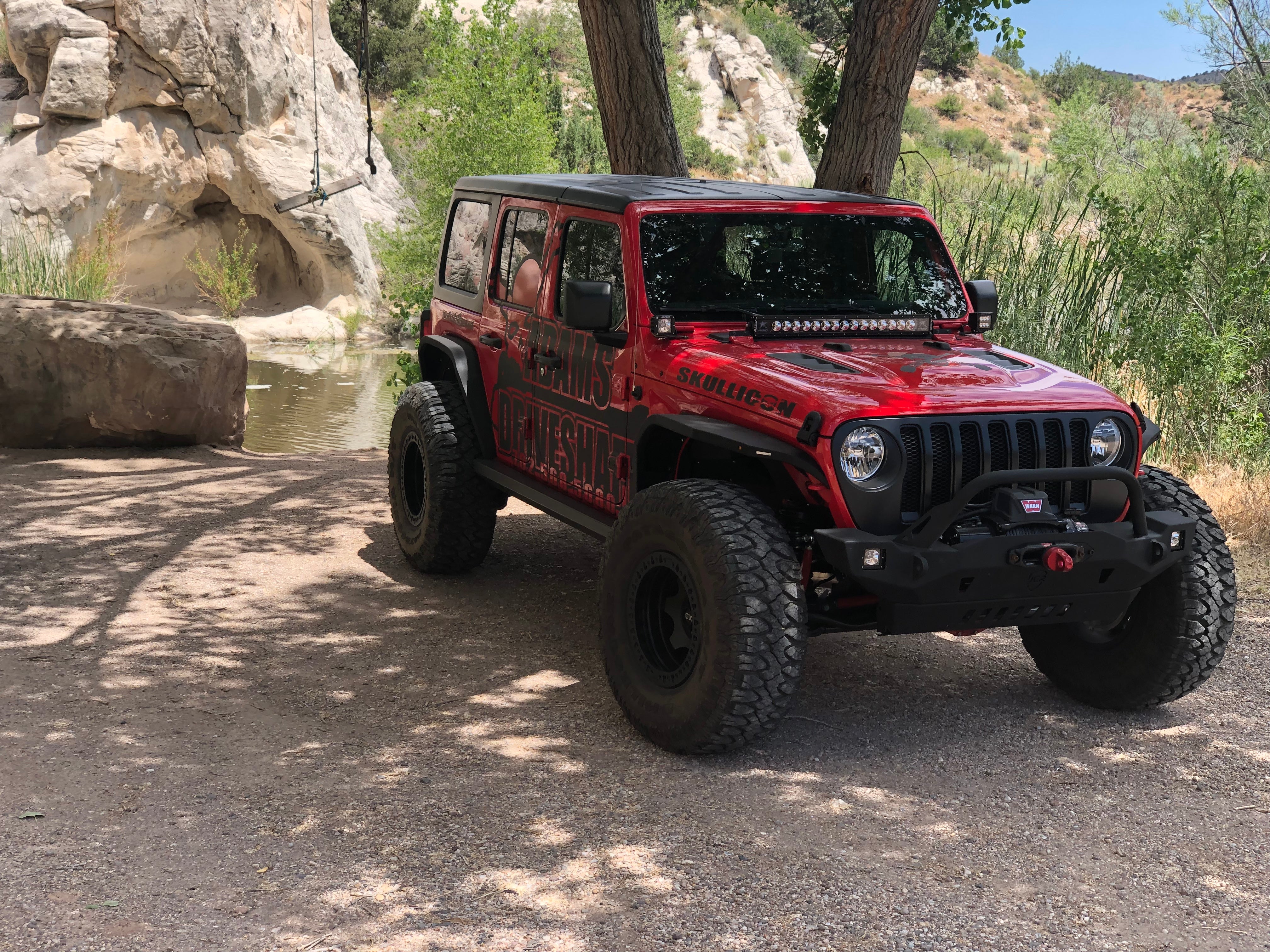

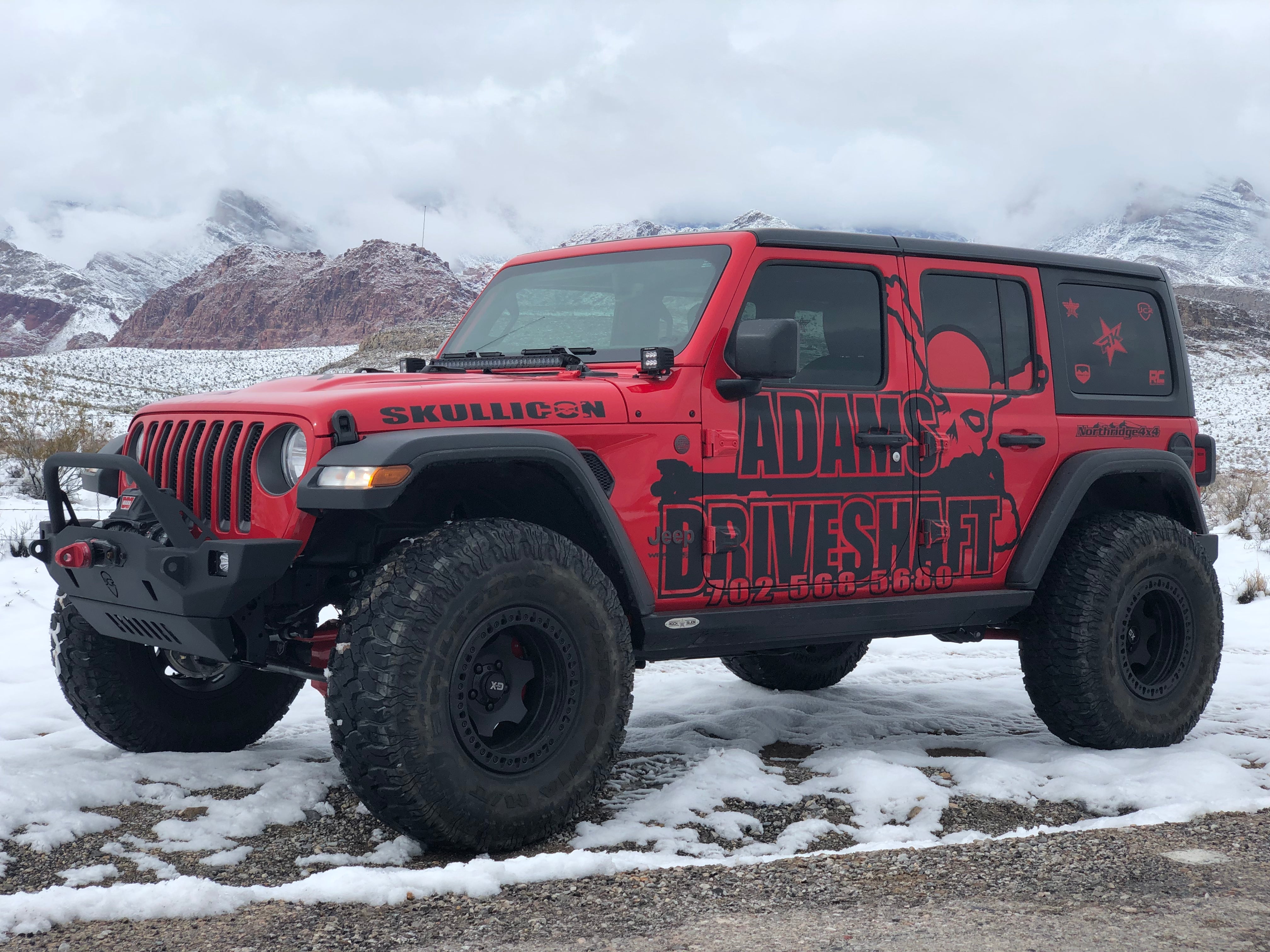

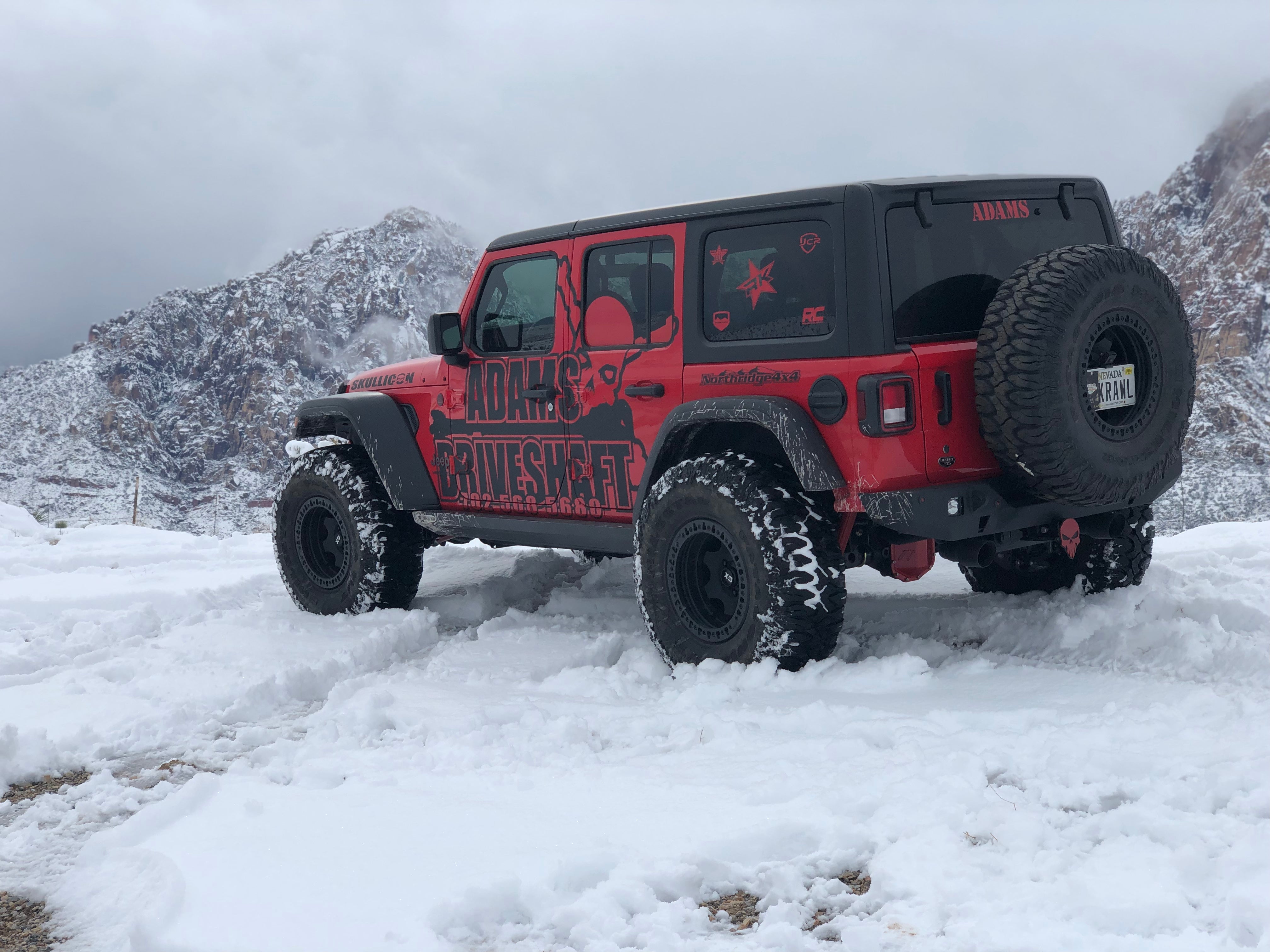

Why not Buy from a Company that Owns, Lives, and Breathes Offroad vehicles like we do as you can see in the Pictures above. We Test our Products on our own Jeeps to make sure the parts we are using hold up to the Pressure and Abuse that they are put through.

Application:

FITS JEEP JL WRANGLER 4XE 2 or 4 DOOR MODELS

*PLEASE NOTE: In some rare instances, the rear differential could be an M200. If you have an M200, please let us know when you order. If you find during installation you have an M200, we will send out the special yoke 2nd Day Express at no charge to exchange.

***Please Note: Depending on the size and manufacturer of your lift kit, rear upper adjustable control arms may be needed to help set the pinion angle***

We do know most of the measurements of your JL, but there are some we do not due to the many different size of lifts, and differentials. Please Note: If you have Coil Overs, Rock Krawler brand Lift kit, a Lift Higher that 4.5", have installed a different T-case, or a Different Differential we will need you to get us a measurement. Please e-mail us, the Year, Make, Model, Lift Size, or call us at 702-568-5680 between the hours of 8:00 to 5:00 pm Pacific time Monday thru Friday after you have purchased the Item. If we don't have your Measurement we might need you to get us a measurement. You could use this measurement chart below to get the measurement.

This Extreme Duty Series Solid 1350 CV Driveshaft will work up to 42" Tall Tires, after that size we recommend upgrading to our [Extreme Duty 1410 Solid Series]. Bigger tires add more Weight, Traction, and more Pressure on your Drivetrain Components like your Driveshafts, Axles, Gears, Etc., so you want to make sure you are buying the Strongest driveshaft for your Jeep. This Driveshaft will work up to a 6" Lift after that the angle may be too Severe or Bind.

Benefits of Buying an Adams Driveshaft:

  • Rear Driveshaft 2 Door Part# ASDJL-1350R-S2D-4XE,  4 Door Part# ASDJL-1350R-S4D-4XE
  • Made out of 2 1/2" X .095 Wall D.O.M. tubing that is Double the Strength of the Factory Tubing to Handle more Abuse. Competitors use 2 1/2" x .083 or 3" x .083.
  • Has a Longer Slip n Stub than some of our Competitors.
  • Built only with Components made by Spicer and Neapco.
  • Uses the Strongest Non Greasable U-joints on the Market.
  • American Made Rear 1350 Flange Style T-case Yoke that gives you more Angle.
  • Comes with a Forged 1350 U-bolt Style Pinion Yoke.
  • Contains a set of [4] Grade 10 CV Bolts with small heads on them so they are easier to install and Loctite.

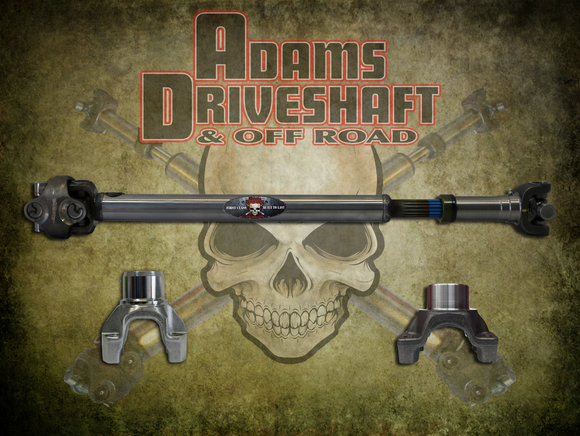

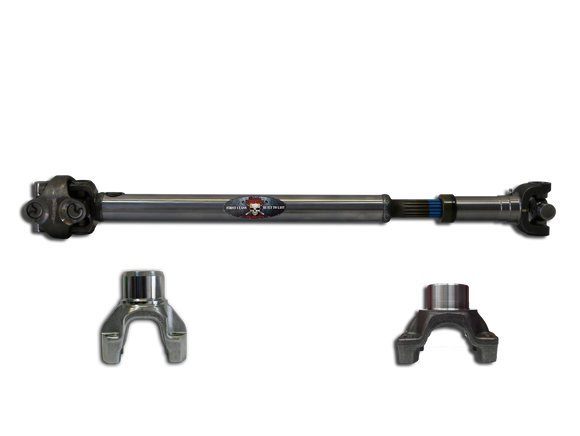

This Item will include the following parts:

[1] 2 1/2" X .95 Wall Extreme Duty 1350 CV Driveshaft with Solid U-joints. Lifetime Warranty if you twist our tube, break a weld, or Break a U-joint in half due to Torque.

[1] Rear 1350 Flange Style Transfer Case Output Shaft Yoke.

[1] Rear 1350 Forged U-bolt Style Pinion Yoke.

[1] Set of 1350 U-bolts.

[1] Set of Grade 10 CV Bolts. There is Four bolts with small heads so they are easier to install.

Driveshafts come painted Gloss Black Show Quality.



CA Residents:  WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov



IF YOU ARE UNSURE IF IT'S A RUBICON, HERE'S HOW TO IDENTIFY IT:




WE WILL NEED A MEASUREMENT LIKE THE PICTURE BELOW SHOWS:



Warranty Information

DRIVESHAFT: Lifetime Warranty on the Welds and Tubing if they break due to torque. All other Components have a One Year Warranty against any defects. No warranty if components break due to bad angles. The CV Kits and Slip n Stub are wear Items and should be greased about every three months or three thousand mile what ever comes first. No warranty if the CV Kit, or Slip n Stub are not maintained properly.
